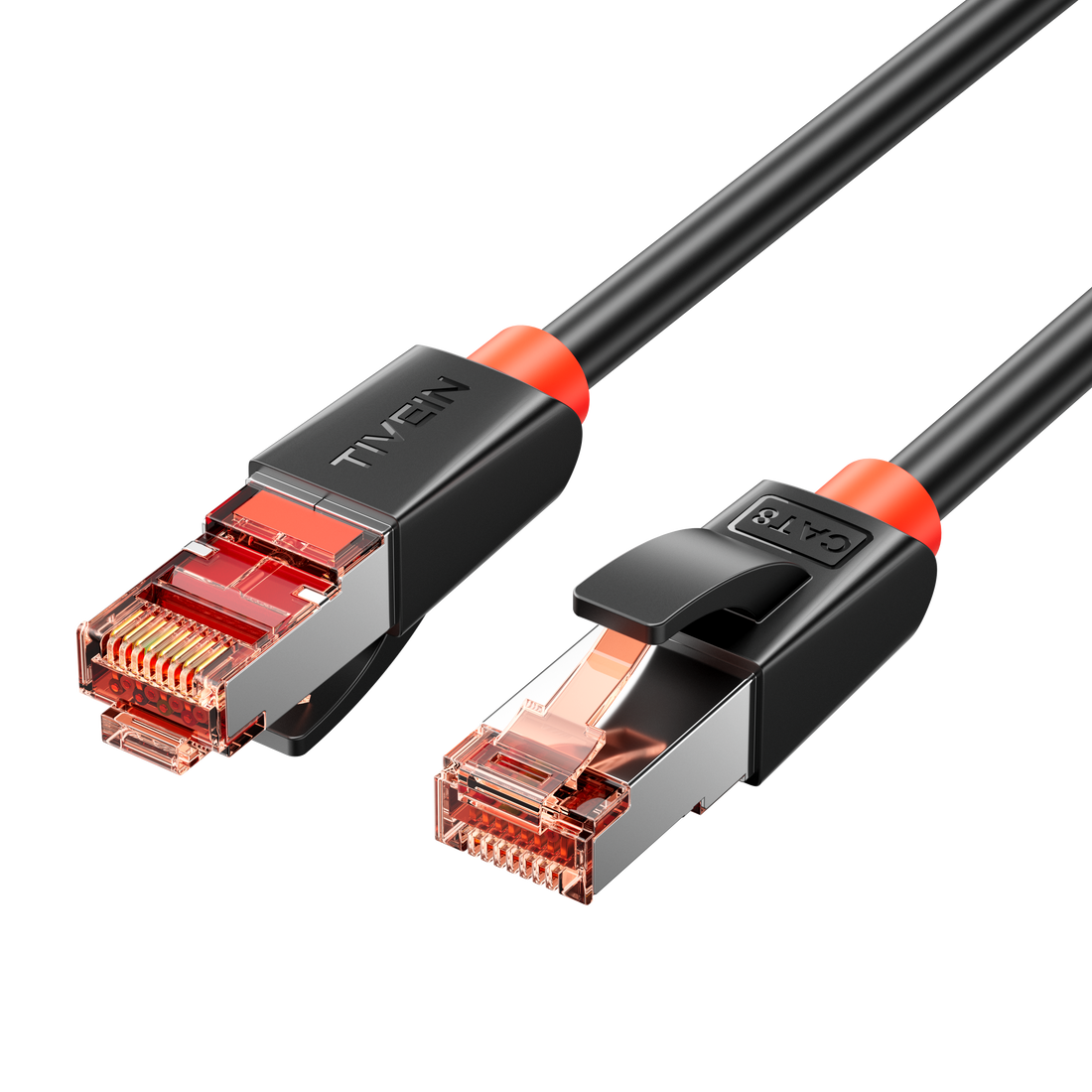

Ethernet Cable Shielding Explained: UTP, FTP, S/FTP and F/FTP
When choosing an Ethernet cable, people often focus on Cat 6, Cat 7, Cat 8, speed, and bandwidth. However, another important specification is often overlooked: cable shielding.
Shielding helps protect the cable from electromagnetic interference (EMI) and can also reduce interference between twisted pairs. But what do terms such as UTP, FTP, S/FTP, and F/FTP actually mean? And which type should you choose?
What Is Ethernet Cable Shielding?
Inside an Ethernet cable are four twisted pairs of copper wires. These wires carry data signals and can be affected by electromagnetic interference from nearby electrical equipment, power cables, motors, and other electronic devices.
A shielding layer is designed to reduce the impact of this interference and help maintain signal integrity.
Ethernet cable shielding is generally described using two parts:
The first letter indicates the overall cable shield, while the letters after the slash describe the shielding around the individual twisted pairs.
UTP – Unshielded Twisted Pair
UTP stands for Unshielded Twisted Pair.
As the name suggests, UTP cables do not have an additional metallic shielding layer. Instead, they rely mainly on the twisting of the wire pairs to reduce interference.
UTP cables are lightweight, flexible, and usually more affordable. They are commonly used in homes, offices, and other environments where electromagnetic interference is relatively low.
FTP / F/UTP – Foil Shielding
FTP or F/UTP cables use a foil shield around the twisted pairs as a group.
The foil provides additional protection against external electromagnetic interference compared with an unshielded cable.
This makes F/UTP cables a good choice for environments with moderate levels of interference while maintaining a relatively flexible design.
S/FTP – High-Level Shielding
S/FTP is a popular shielding structure for high-performance Ethernet cables.
The S represents an overall braided shield, while F indicates that each twisted pair is individually protected by foil.
In other words:
Overall braid + individual foil shielding
This structure provides strong protection against electromagnetic interference and is commonly found in Cat 7 and Cat 8 Ethernet cables.
F/FTP – Double Foil Shielding
F/FTP uses foil shielding around the entire cable as well as foil shielding around each individual twisted pair.
Its structure can be described as:
Overall foil + individual foil shielding
F/FTP cables can provide excellent EMI protection while offering a different balance of flexibility, construction, and cost compared with braided designs.
Which Shielding Type Is Better?
There is no single shielding type that is best for every application.
For a typical home or office network, UTP may be more than sufficient.
For environments with more electromagnetic interference, F/UTP or FTP can provide additional protection.
For high-performance networking applications, particularly where reliable high-speed transmission is important, S/FTP and F/FTP are strong options.
It is also important to remember that shielding alone does not determine cable performance. Conductor quality, cable construction, connector design, manufacturing precision, and proper grounding also play important roles.
Understanding Ethernet cable shielding makes it easier to choose the right cable for different applications.
From affordable UTP Cat 6 cables to highly shielded S/FTP Cat 7 and Cat 8 cables, each design has its own advantages.
For everyday networking, simple may be enough. For high-speed networks or electrically noisy environments, a well-designed shielded cable can provide an extra level of protection and reliability.
When choosing an Ethernet cable, don't just look at Cat 6, Cat 7, or Cat 8. Take a closer look at the shielding structure, too.
